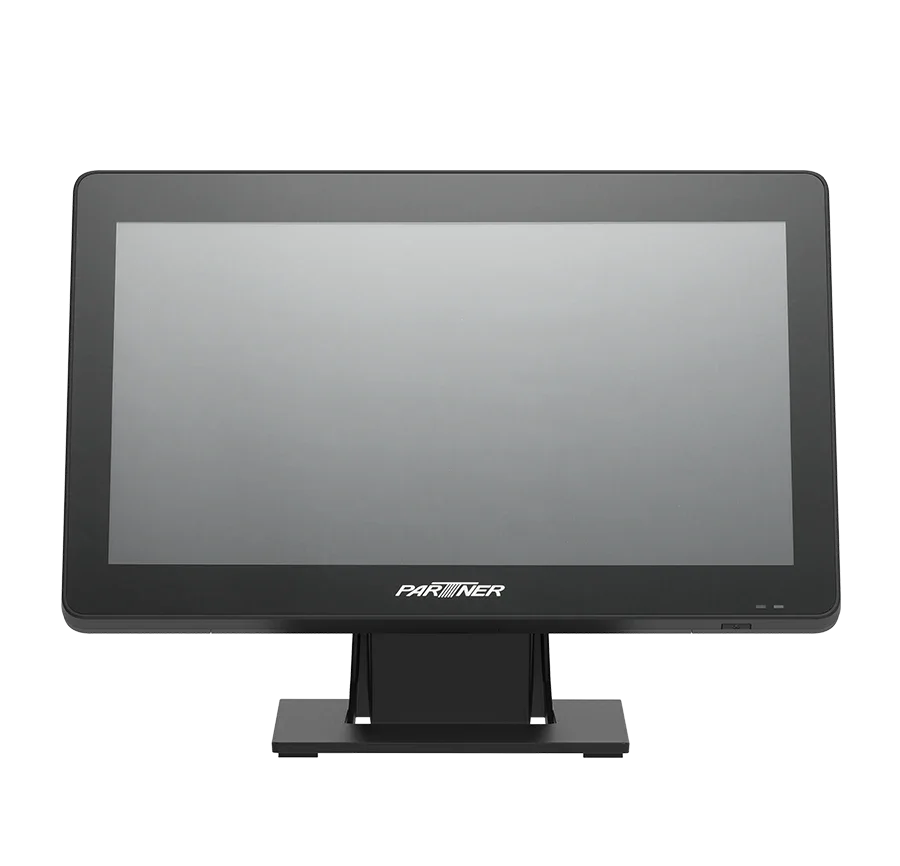

Grace G5 Series
The Grace G5 is embedded with the Intel platform, representing optimization toward the new “process-architecture-optimization” model that provides high power while conserving energy. Recommended color choices are the stylish “Matte Black” and “Matte White” which match a wide range of store environments.
The G5 is designed as a 15.6” touchscreen with widescreen 16:9 ratio, ideal for use in retail, hospitality, food and beverage.
Grace is compatible with plentiful peripherals. The G5 supports our PS-103 Printer Stand as well as VESA mounting options to maximize your space utilization. Additionally, the Grace features an innovative foldable base design for easier packing – bringing big savings to your warehousing and shipment expenses.
Partner Tech creates a streamlined experience for setup and ease-of-use by fully consolidating your brand IT consulting, solution integration and after service.
Features
- Supports up to 3 independent displays (Alder Lake)
- High Speed m.2 PCIe SSD
- WiFi 6E (Option)
- TPM 2.0 und Intel® vPro® (i5, i7 of G4-1-AL)
- Maintenance and service friendly design
Specyfikacje
Display
- 2 x Independent Displays (Main Display + HDMI/VGA)
15.6"
220 nits (option 400 nits)
PCAP Touch
16:9
1366 x 768 (option 1920 x 1080)
Wydajność
- Intel® Celeron™ J6412 (Elkhart Lake)
- Intel® Core™ i3-1215U (Alder Lake-P)
- Intel® Core™ i5-1245U (Alder Lake-P, vPro)
- Intel® Core™ i7-1265U (Alder Lake-P, vPro)
- DDR4: 8GB up to 32GB
- M.2 PCIe SSD: 128GB up to 512GB
- Windows 11 IoT Enterprise (GAC, 64-bit)
- Windows 10 IoT Enterprise (LTSC 21H2, 64-bit)
- Linux (Ubuntu 22.04)
12V (65W)
100~240V
Szczegół
-20°C ~ 60°C
0°C ~ 40°C
5 kg
IP65
- 4 x USB 2.0
- 2 x USB 3.2
- 3 x Serial Ports (RJ145)
- 3 x RS-232 (via cradle connector)
- 3 x 0V/5V/12V selected in BIOS (COM1, COM2, COM3)
- 1 x LAN
- 1 x RJ11
- 1 x HDMI
- 1 x Audio
- 1 x DC +12V out
- 1 x DC + 12V input
- Intel® vPro (i5, i7)
- TPM 2.0
- MSR
- Fingerprint Reader
- RFID / NFC
- i-Button
- VFD
- USB 2nd Display
- HDMI 2nd Display
- 2D Barcode Scanner
- Camera
- IO Extension Box
- PS-103 Cosmo Printer Stand
75 x 75
392 x 291 x 224 mm
15% ~ 80%
1 x 3W Speaker
- IEEE 802.11 a/b/g/n/acR2/axR2
- Bluetooth 5.2
