The ALFA Series offers powerful, compact, and fanless box PCs designed for high-demand retail, POS, digital signage, and industrial applications. With support for both Intel® Elkhart Lake and Tiger Lake platforms, the ALFA series delivers scalable computing, advanced connectivity, and flexible installation for a variety of deployment environments.
Features
- Intel Elkhart Lake/ Tiger Lake CPU with fanless design
- High-speed M.2 PCIe SSD (up to 1 TB)
- Rich I/O interface for connection of peripherals, signage and displays
- Support for USB 3.2 (USB 3.0 for Elkhart Lake)
- Available for Windows and Linux Ubuntu
- Powered USB option
- Easy VESA mounting option

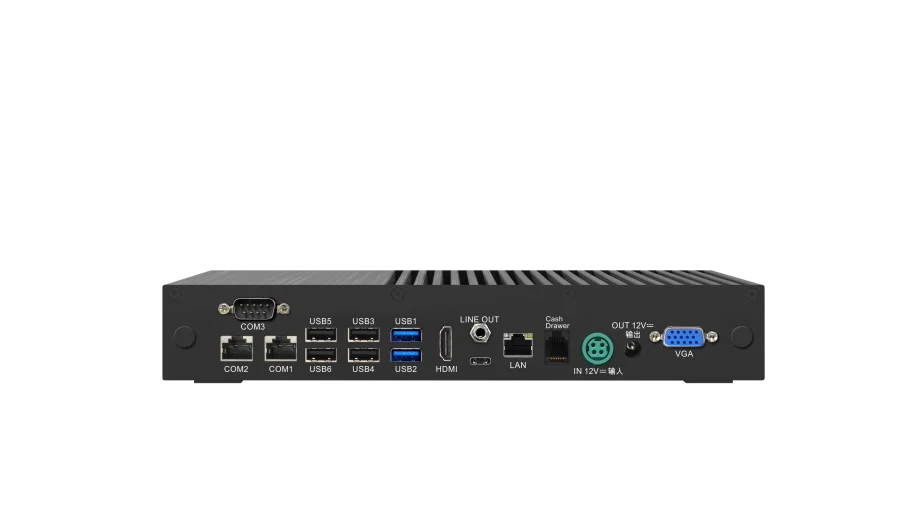

Alfa MINI
I/O Interface: 3 x serial ports, RS-232 (DB9), 0V/5V/12V selected in BIOS, (COM1, COM2, COM3)
Dimensions: 255 x 131.5 x 45.1 mm / 10.04 x 5.18 x 1.78 in
Weight: 1.5 kg / 3.3 Ib

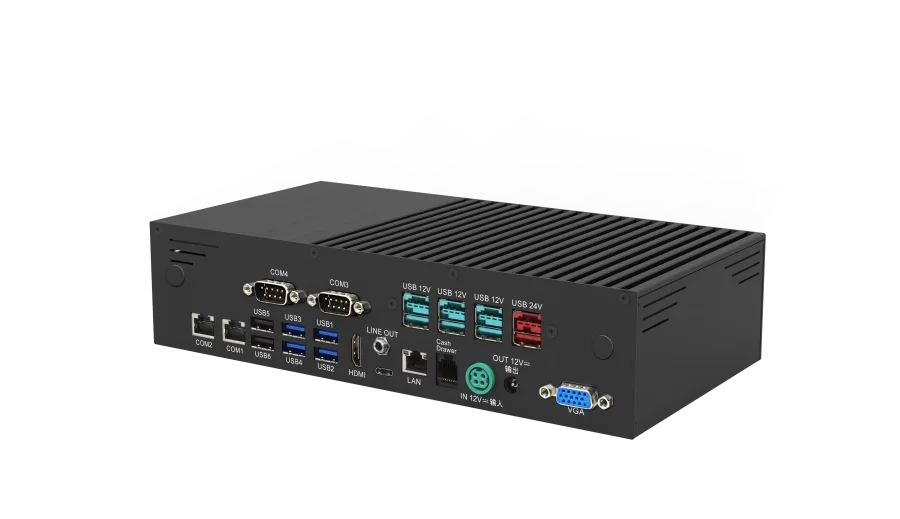

Alfa PRO
Powered USB: 3 x 12V & 1 x 24V Powered USB
Power Adaptor: AC-In 100~240V / DC-Out 12V, 180W
Specyfikacje
Wydajność
- Intel® Celeron ™ J6412 (Elkhart Lake)
- Intel® Core™ i3-1115G4 (Tiger Lake)
- Intel® Core™ i5-1145G7 (Tiger Lake, vPro)
- Intel® Core™ i7-1185G7 (Tiger Lake, vPro)
- DDR4: 4GB
- M.2 PCIE SSD: 128 GB
- Windows 11 IoT Enterprise (GAC, 64-bit)
- Windows 10 IoT Enterprise (LTSC 21H2, 64-bit)
- Linux (Ubuntu 22.04)
Wejście prądu przemiennego: 100 ~ 240 V.
Wyjście DC: 12 V (65 W)
Szczegół
- 4 x Porty szeregowe (RJ145)
- 4 x RS-232 (przez złącze kołyski)
- 1 x 0V/5 V/12 V wybrany w BIOS (COM1, COM2, COM3, COM4)
- 1 x I
- 1 x RJ11
- 2 x DC +12V Out
- 6 x USB 3.2
- 1 x USB 2.0
- 1 x Wejście DC + 12V
- 1 x Audio
- 1 x HDMI
- 1 x Type-C (transfer danych)
- Wi-Fi 6e: Intel AX210
- IEEE 802.11 A/B/G/N/ACR2/AXR2
- Bluetooth 5.2
- S/W TPM 2.0 (BIOS)
- TPM 2.0
0 ~ 40 ° C / 32 ~ 104 ° F.
15% ~ 80%
-20 ~ 60 ° C / -4 ~ 140 ° F.
255 x 131,5 x 63,1 mm / 10,04 x 5,18 x 2,48 cala
1,8 kg / 3,97 jeden
