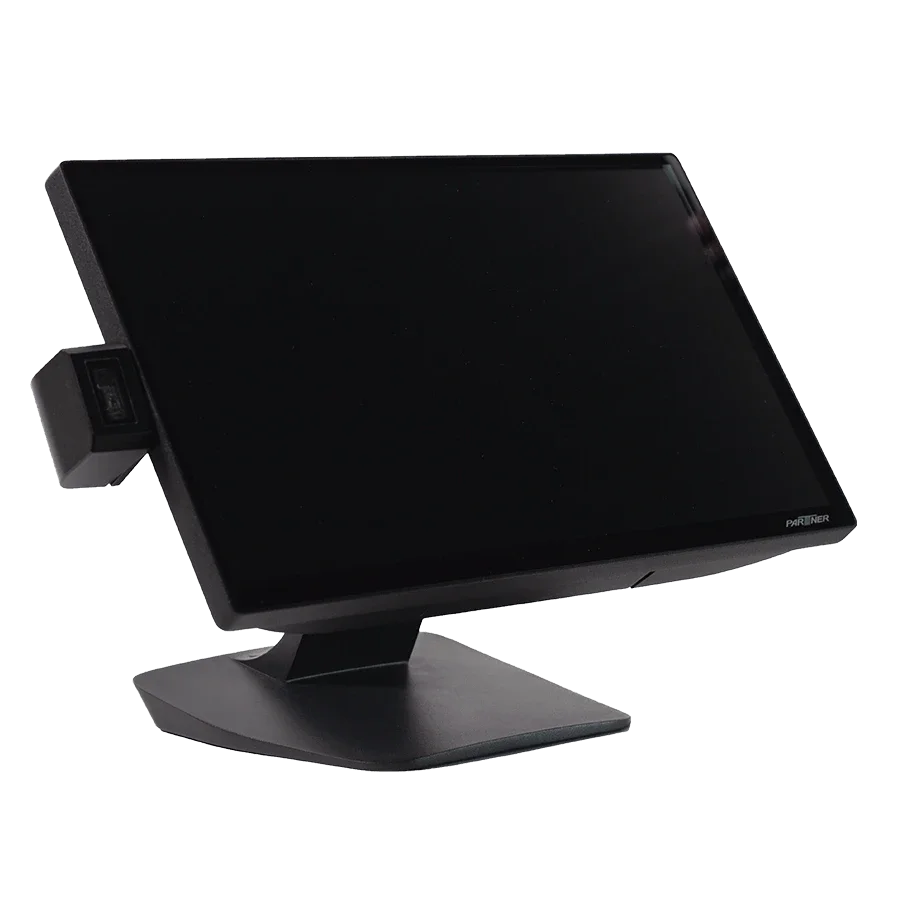

Diana D5 Series

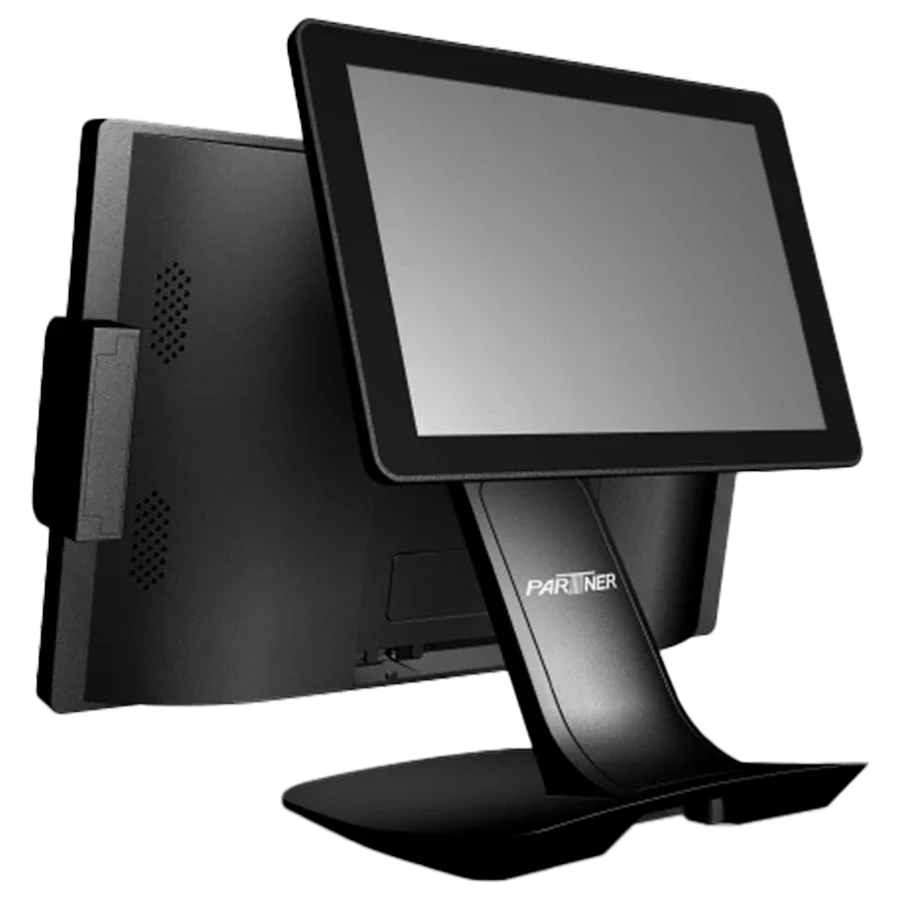

Intelligently designed All-in-One POS Terminal: Our Diana is the result of our Partner Tech‘s future vision for POS. It is one of the lightest and slimmest 15.6“ All-in-One terminals on the market. Completely fanless with advanced and fast memory and m.2 components, Diana is a future-proof POS terminal. Moreover, thanks to its VESA mounting capability, it can be mounted very flexibly. Optional extras available include a magnetic card reader, an iButton module, or a second display.
All-In-One POS 15.6“ Multi-Touch Screen: Slim and elegant design for retail and hospitality, fanless design, easily swappable m.2.
Diana – our compact All-In-One with 15.6“ – fanless and with extensive modules – ideal for retail and hospitality! Great design thanks to its slim frame – fits perfectly with your customers.
Features
- 15.6” Display ( 1920 x 1080, Full HD)
- High Speed m.2 SSD and DDR5 RAM (D5-1-AL)
- Support for WiFi 6E
- Supports TPM 2.0 and Intel® vPRO® (i5 of D5-1-AL)
- Maintenance and service friendy concept
Specifikacije
Display
15.6"
PCAP Touch
350 nits
16:9
1920 x 1080
Performance
- M.2 PCIe SSD: 128GB up to 512GB
- DDR4: 4GB up to 16GB
100~240V
19V (65W)
- Intel® Celeron™ J6412 (Elkhart Lake)
- Intel® Core™ i3-1215U (Alder Lake-P)
- Intel® Core™ i5-1235U (Kaby Lake)
- Windows 11 IoT Enterprise (GAC, 64-bit)
- Windows 10 IoT Enterprise (LTSC 21H2, 64-bit)
- Linux (Ubuntu 22.04)
Details
360 (W) x 179 (H) x 261 (D) mm
- i-Button
- RFID / NFC
- Fingerprint Reader
- 2D Barcode Scanner

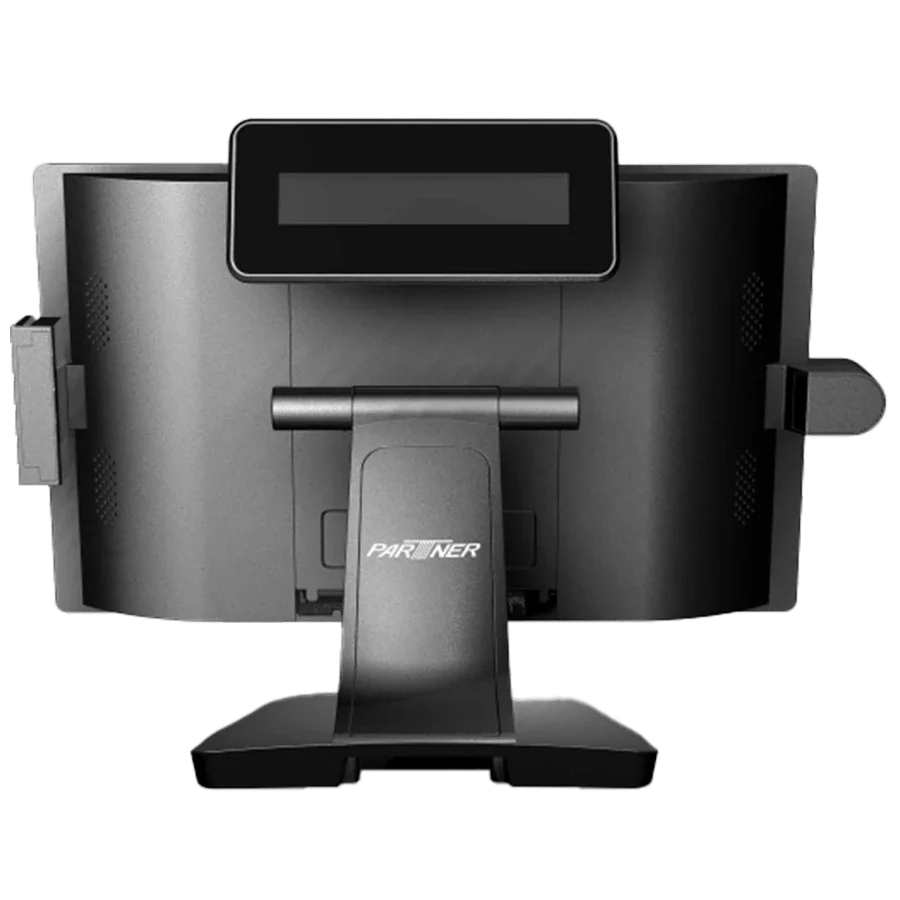

- VFD
- MSR
- USB 2nd Display
- IO Extension Box
- PS-103 Cosmo Printer Stand
-20°C ~ 60°C
75 x 75
15% ~ 80%
0°C ~ 40°C
IP54
- 4 x USB 2.0
- 3 x USB 3.1
- 2 x Serial Ports (RJ145)
- 2 x RS-232 (via cradle connector)
- 2 x 0V/5V/12V selected in BIOS (CO M1, COM2)
- 1 x LAN
- 1 x RJ11
- 1 x Type-C
- 1 x DC + 12V input
2 x 2W Speakers
5.2kg
TPM 2.0 Intel® vPRO (i5 CPU only)
- IEEE 802.11 a/b/g/n/acR2/axR2
- Bluetooth 5.2
