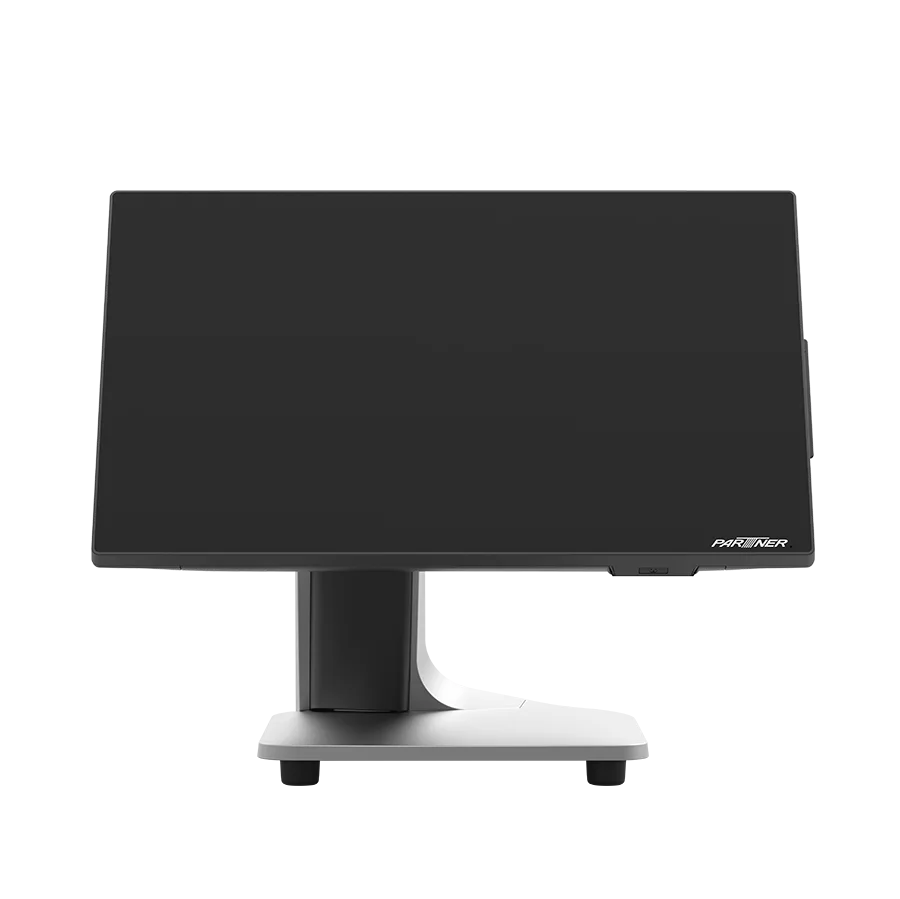

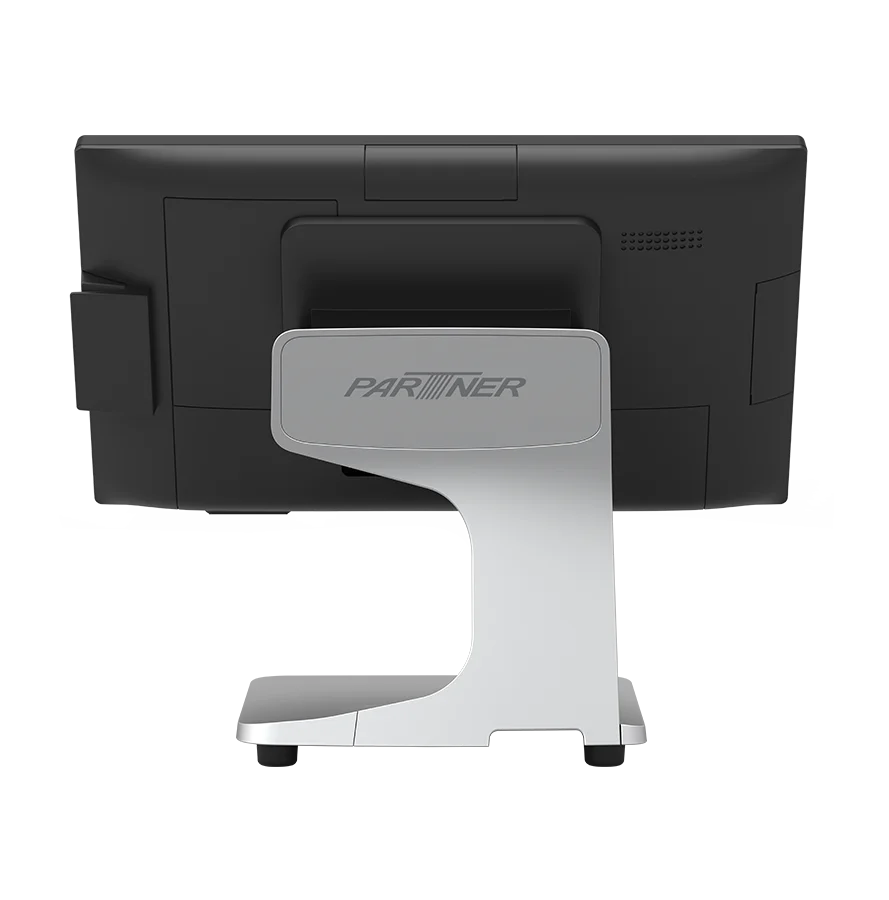

Audrey A5 II Series – Modular. Stylish. Scalable.
The Audrey A5 II Series from Partner Tech is a next-generation POS terminal lineup designed for businesses that demand flexibility, performance, and elegance at the point of sale. With a sleek, modern design and a modular hardware approach, the A5 II series adapts to a wide range of retail and hospitality environments — from high-end boutiques to fast-paced quick service restaurants.
Whether you need a powerhouse for demanding applications or a cost-effective solution for basic transactions, the Audrey A5 II has a configuration that fits.
Features
- On-cell touch, optically bonded display
- Ultra-thin 7mm bezel
- 15.6” full HD with anti-glare
- High-performance Intel processor
- Windows 10/11 and Linux Ubuntu
- High-speed M.2 PCIe SSD with up to 1TB
- Support for Wi-Fi 6E
- USB Type-C connector
Specifikacije
Display
400 nits
On-Cell Touch
15.6"
- 3 x Independent Displays (Main Display + HDMI + Type-C)
1920 x 1080
16:9
Performance
- Windows 11 IoT Enterprise LTSC 24H2 (64bit)
- Windows 10 IoT Enterprise (LTSC 21H2, 64-bit)
- Linux (Ubuntu 22.04)
12V (65W)
- Intel® Core™ i3-1115G4
- Intel® Core™ i5-1145G7 (vPro)
- Intel® Core™ i7-1185G7 (vPro)
- Intel® Celeron™ J6412 (Elkhart Lake)
- Intel® Processor N97
- Intel® Core™ i3-N305
100~240V
- DDR4: 8GB up to 32GB
- M.2 PCle SSD: 128GB up to 1TB
Details
- MSR
- EMV Reader
- Fingerprint Reader
- RFID / NFC
- i-Button
- VFD
- USB 2nd Display
- HDMI 2nd Display
- 2D Barcode Scanner
- Camera
- IO Extension Box
- Cash Drawer
- PS-103 Cosmo Printer Stand
- EX-100
- EX-101
364 (W) x 288 (H) x 201 (D) mm
- 2 x Serial Ports (RJ145)
- 2 x RS-232 (via cradle connector)
- 1 x LAN
- 1 x RJ11
- 1 x DC +12V out
- 4 x USB 3.2
- 2 x USB 2.0
- 1 x DC + 12V input
- 1 x Audio
- 1 x HDMI
- 1 x Type-C (data transfer + display)
IP54
5.4 kg
75 x 75
1 x 3W Speaker
-20°C ~ 60°C
- Intel® vPro (i5, i7)
- TPM 2.0
15% ~ 80%
0°C ~ 40°C
- Wi-Fi 6E: Intel AX210
- IEEE 802.11 a/b/g/n/acR2/axR2
- Bluetooth 5.3
