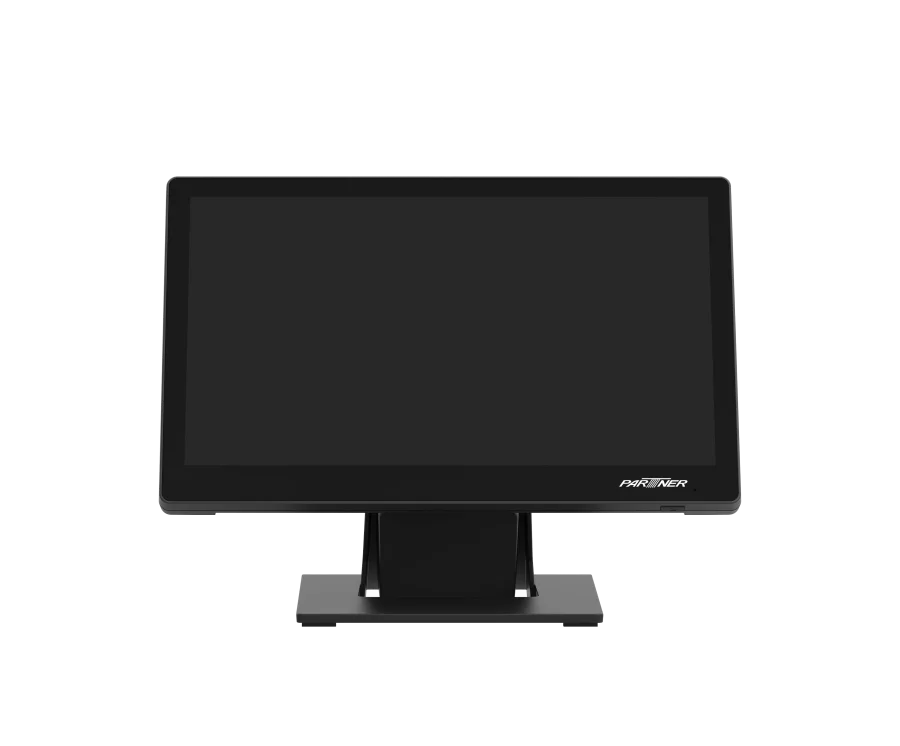

Compact Touch POS Terminal
Joy J14 is a compact POS product offering a powerful solution for businesses who look to optimize their checkout experience.
With expandable features, it adapts effortlessly to your evolving requirements.
Powerfull and rugged
The Intel Elkhart Lake J6412 provides ample processing power for your POS and other business solutions. In addition its rugged, fanless design makes it less vulnerable to damage from dust, bumps or vibrations that can in a busy commercial environment.
System Rights for your Business
The Joy J14 lets you choose the operating system that’s right for your business and your staff, including Windows 11, Windows 10, and Linux (Ubuntu).
Customize With Peripherals
The Joy J14 comes with a large selection of peripherals that allows you to configure your POS terminal with different payment terminal brackets, fingerprint reader, EMV reader, MSR, camera, cash drawer, RFID-reader, customer display, extra digital display, printer, and barcode reader.
Features
- High performance Intel® CPU with fanless design
- Front panel IP65
- HDMI 1366 x 768 @ 60Hz Support
- High speed M.2 SSD
- Wi-Fi 6E
- Type-C USB
- TPM 2.0
- Windows 11 IoT Enterprise LTSC
Specifications
Display
220 nits
- 2 x Independent Displays (Main Display + HDMI/VGA)
14"
1366 x 768
PCAP Touch
16:9
Performance
12V (65W)
- M.2 PCIe SSD: 128GB up to 512GB
- Windows 11 IoT Enterprise LTSC 24H2 (64bit)
- Windows 10 IoT Enterprise (LTSC 21H2, 64-bit)
- Linux (Ubuntu 22.04)
- DDR4 4GB up to 32GB
- Intel® Celeron™ J6412 (Elkhart Lake)
100~240V
Detail
1 x 3W Speaker
341 (W) x 254 (H) x 225 (D) mm
- MSR
- EMV Reader
- Fingerprint Reader
- RFID / NFC
- i-Button
- VFD
- USB 2nd Display
- HDMI 2nd Display
- 2D Barcode Scanner
- Camera
- IO Extension Box
- Cash Drawer
- Wi-Fi 6E: Intel AX210
- IEEE 802.11 a/b/g/n/acR2/axR2
- Bluetooth 5.3
- TPM 2.0
- 2 x RS232 (RJ45)
- 2 x RS-232 (via cradle connector)
- 2 x 0V/5V/12V selected in BIOS (CO M1, COM2)
- 1 x LAN
- 1 x RJ11
- 1 x DC +12V out
- 2 x USB 3.0
- 4 x USB 2.0
- 1 x DC + 12V input
- 1 x Audio
- 1 x HDMI
- 1 x Type-C (data transfer)
IP65
3.18 Kg / 7.01 Ib
15% ~ 80%
75 x 75
0°C ~ 40°C
-20°C ~ 60°C
