Partner Tech

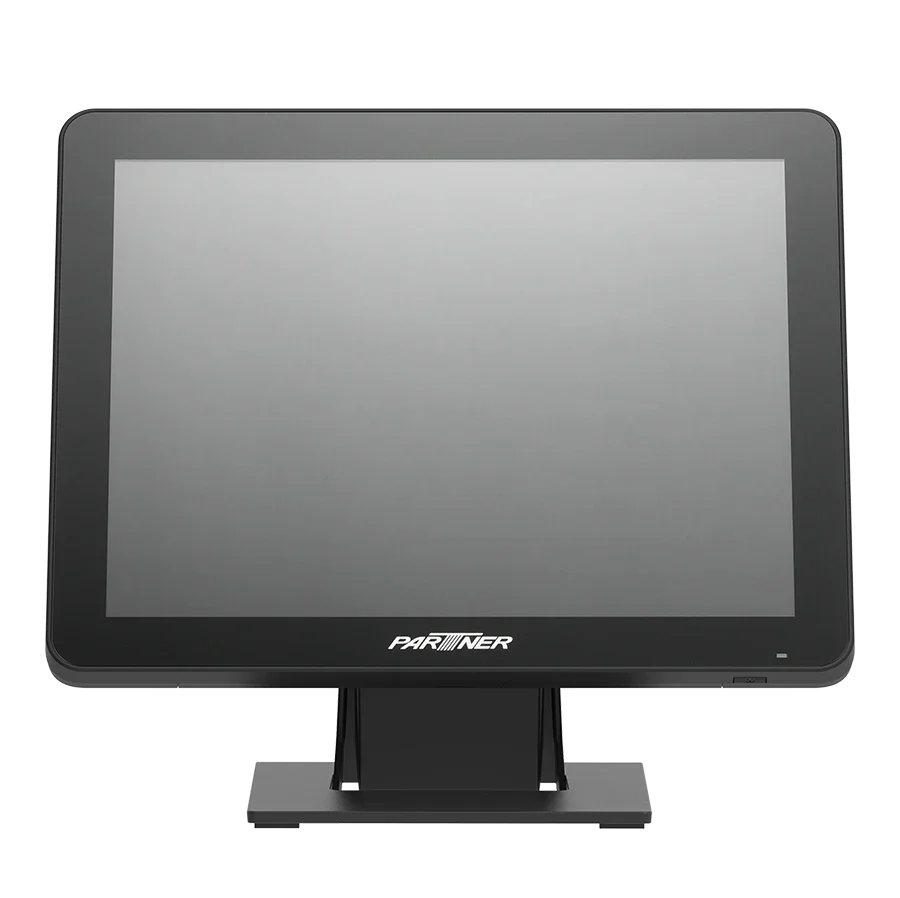

Grace G4

POS Solution

Advanced POS Solution with Elegant Design. The Grace G4 combines cutting-edge technology with a sophisticated, slim profile to enhance your point-of-sale operations.

Grace G4 Series

The Grace G4 is embedded with the Intel platform, representing optimization toward the new “process-architecture-optimization” model that provides high power while conserving energy. Recommended color choices are the stylish “Matte Black” and “Matte White” which match a wide range of store environments.

The G4 is designed as a 15” touchscreen with the traditional 4:3 ratio, ideal for use in retail, hospitality, food and beverage.

Grace is compatible with plentiful peripherals. The G4 supports our PS-103 Printer Stand as well as VESA mounting options to maximize your space utilization. Additionally, the Grace features an innovative foldable base design for easier packing – bringing big savings to your warehousing and shipment expenses.

Partner Tech creates a streamlined experience for setup and ease-of-use by fully consolidating your brand IT consulting, solution integration and after service.


Gallery item 1Gallery item 2Gallery item 3Gallery item 4

Features

  • Support up to 3 independent Displays (Alder Lake)
  • High Speed M.2 PCIe SSD
  • Wi-Fi 6E Support
  • TPM 2.0 Support
  • Maintenance and Service Friendly Design


Specifications

Display

Aspect Ratio

4:3

Resolution

1024 x 768

Size

15"

Brightness

350 nits

Touch

PCAP Touch

Display Support
  • 2 x Independent Displays (Main Display + HDMI/VGA)

Performance

Power Dc

DC Output: 12V (65W)

Power Ac

AC Input: 100~240V

Storage
  • M.2 PCIe SSD: 128GB
  • M.2 PCIe SSD: 256GB
  • M.2 PCIe SSD: 512GB
Operating System
  • Windows 11 IoT Enterprise (GAC, 64-bit)
  • Windows 10 IoT Enterprise (LTSC 21H2, 64-bit)
  • Linux (Ubuntu 22.04)
Cpu
  • Intel® Celeron™ J6412 (Elkhart Lake)
Memory
  • DDR4: 8GB
  • DDR4: 16GB
  • DDR4: 32GB

Detail

Speaker

1 x 3W Speaker

Tpm And Vpro
  • TPM 2.0
Operating Temperature

0~40°C / 32~104°F

Weight

5.2 kg

Spill And Dust Resistant

IP65

Storage Temperature

-20~60°C / -4~140°F

Io Interface
  • 4 x USB 2.0
  • 2 x USB 3.2
  • 3 x Serial Ports (RJ145)
  • 3 x RS-232 (via cradle connector)
  • 3 x 0V/5V/12V selected in BIOS (COM1, COM2, COM3)
  • 1 x LAN
  • 1 x RJ11
  • 1 x HDMI
  • 1 x Audio
  • 1 x DC +12V out
  • 1 x DC + 12V input
Operating Humidity

15% ~ 80%

Wireless Communication
  • IEEE 802.11 a/b/g/n/acR2/axR2
  • Bluetooth 5.2
Dimensions

360 x 320 x 224 mm

Peripheral Options
  • MSR
  • Fingerprint Reader
  • RFID / NFC
  • i-Button
  • VFD
  • USB 2nd Display
  • HDMI 2nd Display
  • 2D Barcode Scanner
  • Camera
  • IO Extension Box
  • PS-103 Cosmo Printer Stand
