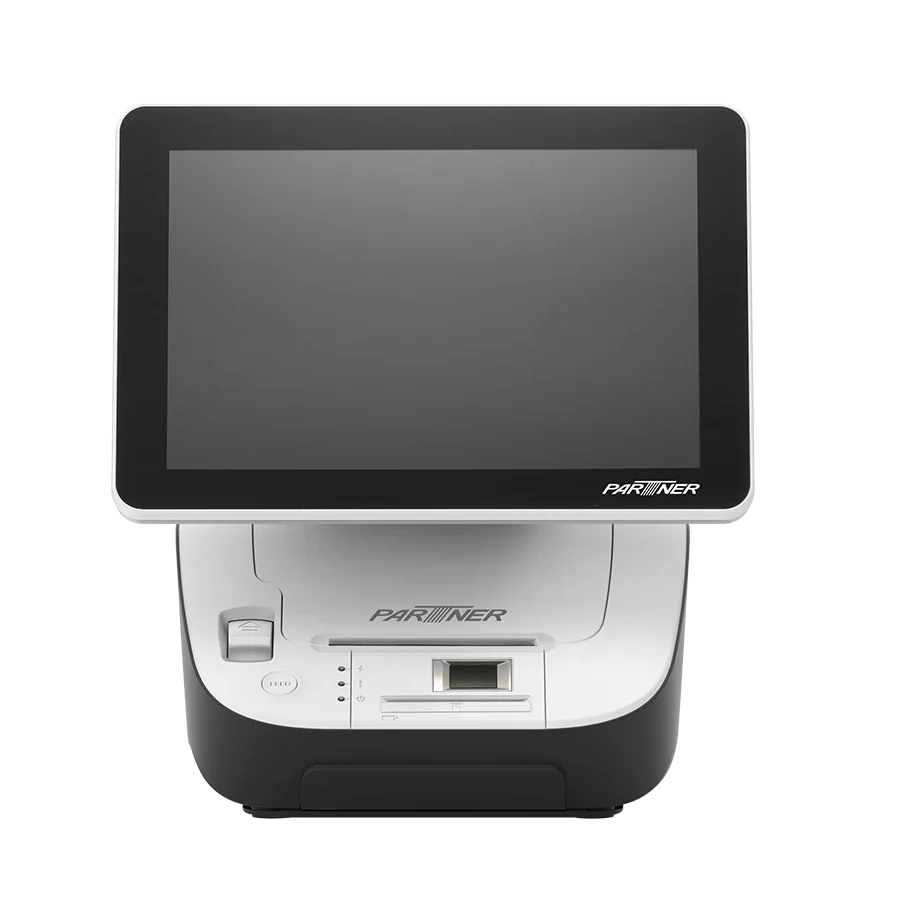

All-in-one compact POS
Packed with power, the Cleo C10/ C14 POS delivers top performance in a compact, minimalistic design, elevating the checkout experience in retail and hospitality.
Built on the latest technology that supports new, more demanding applications and databases. The Intel Elkhart Lake/ Rockchip RK3568 processor, M.2 SSD memory and up to 16 GB DDR4 RAM ensure high-speed data processing and responsiveness in all situations.
The Cleo C10/C14 is specially designed for counter-limited industries. The compact design helps conserve counter space with its small footprint, and because peripherals are integrated into the all-in-one, it keeps workspaces uncluttered.
Features
- Compact all-in-one design
- 10.1" PCAP touch display
- Embedded 3" thermal printer and payment peripherals
- Large selection easily accessible ports
- Concealed cables keep the counter clutter-free
- Optional Wi-Fi and BT connectivity
Specifications
Display
- 3 x Independent Displays (Main Display + HDMI + CD-101C )
250 nits
10:16
800 x 1280
PCAP Touch
10.1"
Performance
DC Output 24V (72W)
- M.2 PCIe SSD: 128GB
- M.2 PCIe SSD: 256GB
- M.2 PCIe SSD: 512GB
- Intel® Celeron™ J6412 (Elkhart Lake)
- Windows 11 IoT Enterprise (GAC, 64-bit)
- Windows 10 IoT Enterprise (LTSC 21H2, 64-bit)
- Linux (Ubuntu 22.04)
- DDR4: 4GB
- DDR4: 8GB
- DDR4: 16GB
AC Input: 100~240V
Detail
- Wi-Fi 6E: Intel AX210
- IEEE 802.11 a/b/g/n/acR2/axR2
- Bluetooth 5.2
262.26 x 291.77 x 247.13 mm
15% ~ 80%
- 4 x USB 3.2
- 2 x USB 2.0
- 4 x Serial Ports (RJ145)
- 4 x RS-232 (via cradle connector)
- 4 x 0V/5V/12V selected in BIOS (COM1 , COM2, COM3, COM4)
- 1 x LAN
- 1 x RJ11
- 1 x Audio
- 1 x HDMI
- 1 x DC + 24V input
-20~60°C / -4~140°F
3" Thermal Printer
3.3 Kg / 7.28 lb
- H/W TPM 2.0
0~40°C / 32~104°F
1 x 3W Speaker
- MSR
- EMV Reader
- Fingerprint Reader
- RFID / NFC
- 2D Barcode Scanner
- Camera
- Customer Displays
